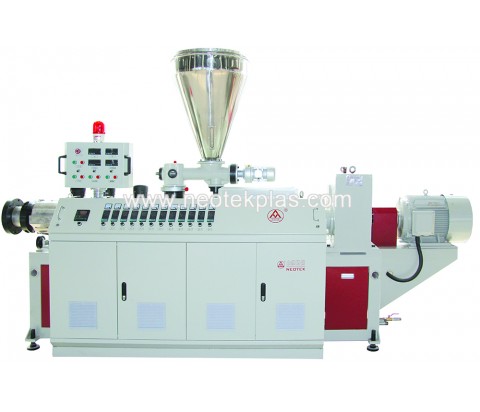

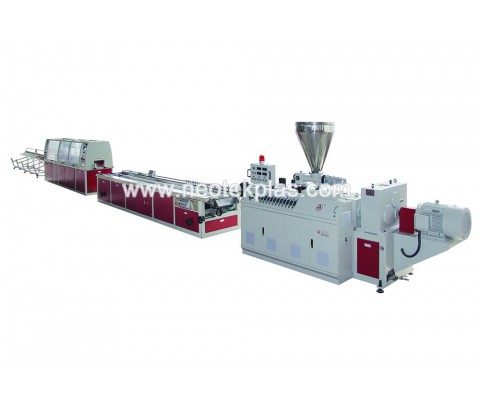

YF series PVC profile production line is mainly used to extrude PVC door and window profiles. The production line can choose different specifications of flat double (conical double) twin screw extruders according to the profile section of the pen barrel and the mold, and is equipped with the corresponding vacuum ejector, tractor, cutting machine, turning over platform and other auxiliary equipment.
model | SJZ45/90 | SJZ50/105 | SJZ55/110 | SJZ65/132 | SJZ80/156 |
Transmission power | 15 | 18.5 | 22 | 30-37 | 55 |
The screw diameter | 45/90 | 50/105 | 55/110 | 65/132 | 80/156 |
The screw rotation speed | 34.7 | 34.7 | 34.7 | 34.7 | 34.7 |
PVC production | 60-80 | 80-100 | 120 | 150-250 | 250-400 |
specifications | YF108 | YF180 | YF240 | YF300 | YF400 |
Maximum sheet width | 108 | 180 | 240 | 300 | 400 |
Traction height | 100 | 100 | 150 | 150 | 150 |
The traction | 2 | 2 | 2 | 2 | 3 |
Traction speed | 0-6 | 0-5 | 0-5 | 0-5 | 0-5 |
Total power of auxiliary engine | 9.9 | 18.7 | 27.5 | 31 | 35 |
